Applications |
| |
|
Used in interconnection of process control, communication and panel control systems. |
|
|
|
| |
|
Standards |
| |
|
 |
IS 1554 (Part-1)1988 |
 |
| |
|
|
IS 7098 (Part-1)1988 |
| |
|
|
BS 6346 |
| |
|
|
BS 5467 |
| |
|
|
BS 7846 |
| |
|
|
IEC 60502 |
| |
|
|
Customer Specification |
|
|
|
| |
|

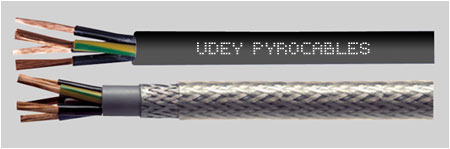

Typical Constructions for Control Cables
|
| |
|
|
Conductor : Electrolytic grade annealed bare / tinned copper, either Solid/Stranded/Multistranded conductors |
| |
|
|
Range : 1.5 / 2.5 / 4 Sq.mm |
| |
|
|
Voltage grade : (650/1100 V) |
| |
|
|
Insulation : General Purpose PVC/ Heat Resistant PVC/ LDPE/XLPE/ZHLS |
| |
|
|
Identification : Color code / Ring marked/ Dual color extruded/number printed on all cores |
| |
|
|
Inner Sheath : PVC/ HRPVC/ FRPVC/ FRLS PVC/ ZHLS |
| |
|
|
Armour : Hot Dip Galvanized Steel Round Wire / Strip/ Double Steel Tape/ Steel Tape/Aluminium Wire |
| |
|
|
Braid : Steel Wire / Copper Wire |
| |
|
|
Outer Sheath : PVC/ HRPVC/ FRPVC/ FRLS PVC/ ZHLS |
| |
|
|
|
| |
|
PROPERTIES OF FIRE PERFORMANCE IN CABLES |
| |
|
| PROPERTIES COVERED |
TYPES |
| |
FR
 |
Flame Retardant |
|
FRLS
|
Flame Retardant Low Smoke |
|
ZHLS
|
Zero Halogen Low Smoke |
|
Flame Spread Resistant |
Properties
|
Ref.Standard |
Applicable |
Limit |
Applicable |
Limit |
Applicable |
Limit |
Applicable |
Limit |
Oxygen Index |
ASTMD-2863 |
√ |
29%
(Min.) |
√ |
29%
(Min.) |
√ |
30% (Min.) |
√ |
30% (Min.) |
Temperature Index |
ASTMD-2863 |
√ |
250°C
(Min.) |
√ |
250°C
(Min.) |
√ |
250°C (Min.) |
√ |
250°C (Min.) |
Smoke Density Rating |
ASTMD-2843
|
|
|
√ |
40%
(Max.) |
√ |
20% (Max.) |
|
|
Halogen Acid Gas |
IEC : 60754-1 |
|
|
√ |
20%
(Max.) |
√ |
0.5% (Max.) |
|
|
Flame Test on Single cable |
IEC : 60332-1 |
√ |
As per specification |
√ |
As per specification |
√ |
As per specification |
√ |
As per specification |
Fire Test on Bunched cable |
IEC : 60332-3 |
|
|
|
|
√ |
As per specification |
√ |
As per specification |
| |
|
| |
|
|
| |
|
 |
